Frozen Design Language Engine — pipeline stage P4

Design
language.

A city speaks a design language — material, frontage, roofline, the way a building meets the street. The programme encodes that language so an agent can check a submission against it. The hard part was not writing the rules; it was drawing the line between what the design language may decide and what belongs, immovably, to statute.

5Dubai 2040 urban centres
10City typologies
29FDL parameters
plotNot street — the binding scale

The scope boundary

what it may — and may not — decide

Height, FAR, plot coverage and setbacks are set per plot, not per street, and they arrive on the affection plan from Dubai Municipality. The engine therefore cannot be the source of quantitative envelope limits — it is a narrowing overlay within the affection-plan envelope. Confuse the two and the guardrail is contradicted by the first affection plan it meets.

The engine governs

Material palettein scope
Facade articulation & glazing expressionin scope
Ground-plane & roofscape treatmentin scope
Colour & character alignment to the centrein scope

The engine may never originate

Building heightstatutory
Floor Area Ratiostatutory
Plot coveragestatutory
Setbacksstatutory

The five urban centres

Dubai 2040 — official character

The 2040 plan gives each centre a named functional character — the legitimate basis for a differential design language. Three exist today; two are new.

Deira & Bur Dubai
Historic areas that celebrate Dubai's history and preserve its culture and heritage.
Global economic & commercial centre
Encompasses DIFC, Sheikh Zayed Road, Downtown and Business Bay — wider than the “Downtown and Business Bay” shorthand, and it contains a split-authority jurisdiction (DDA issues the permit inside DIFC).
Dubai Marina & JBR
Tourism and entertainment centre — a global destination for leisure and hotel activity.
Expo 2020 Centre
New. An economic growth hotspot built on exhibitions, global events and integrated logistics.
Dubai Silicon Oasis Centre
New. A knowledge-and-innovation centre positioned to attract talent.

A correction the charter needed: the second centre officially includes DIFC and Sheikh Zayed Road. Because DIFC is permitted by DDA, the design-language zone boundary and the permitting-authority boundary are not the same line — two independent spatial indexes, and a real coordination trap if treated as one.

Regulatory anchors

verified, with confidence stated

Every anchor carries its confidence. Where a rule rests on a secondary source, it is flagged for verification against the official code before it is ever allowed to bind a decision — the same honesty the autonomy figures are held to.

Floor Area RatioStatutory
Defined in Local Order No. (2) of 1999 as total floor area divided by plot area. FAR has a legal Dubai definition — the engine must use it exactly and never import an external one.
Dubai Building Code 2021Verified
The DBC exists to “unify building design across Dubai” and sets minimum requirements for health, safety, welfare, environmental impact and sustainable development.
Building height ruleMedium confidence
Max height (m) = (floors incl. ground) × 6 m — e.g. G+10 → 66 m. Drawn from a secondary reproduction of DBC Part B, not the official PDF. Flagged for verification before it is encoded as binding.
Facade / fire-spread couplingMedium confidence
Windows may face a neighbouring plot only when the required setback and external fire-spread rules are both satisfied. A genuine cross-domain coupling: design language cannot be specified independently of the fire code.
BUA vs GFAUnresolved
A secondary claim puts BUA 15–25% below GFA for residential. Unverified and vendor-authored — and the permit fee is charged per sq ft of BUA, so any ambiguity is a direct fee-calculation risk on every case.

Machine-readable compliance artefacts

directly ingestible · DM-published

The highest-value, lowest-risk automation available: Dubai Municipality already publishes these as structured files, so the engine can consume them with no interpretation layer between the code and the rule.

Design language, drawn

FDL registry →

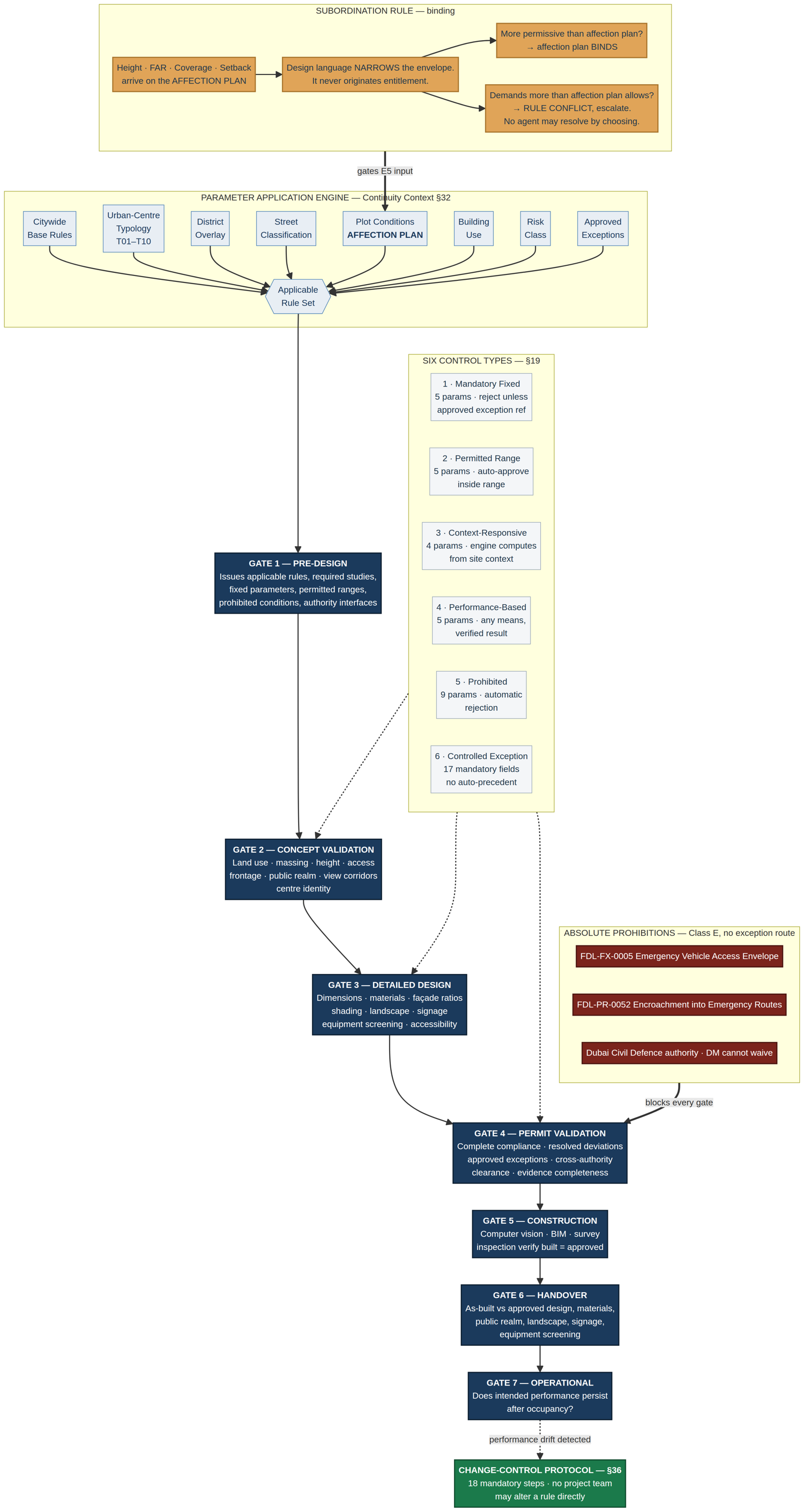

Form & Design Language gatesThe FDL gates applied across the ten Dubai-2040 city typologies — 29 parameters governing right-of-way, setbacks, frontage and envelope.

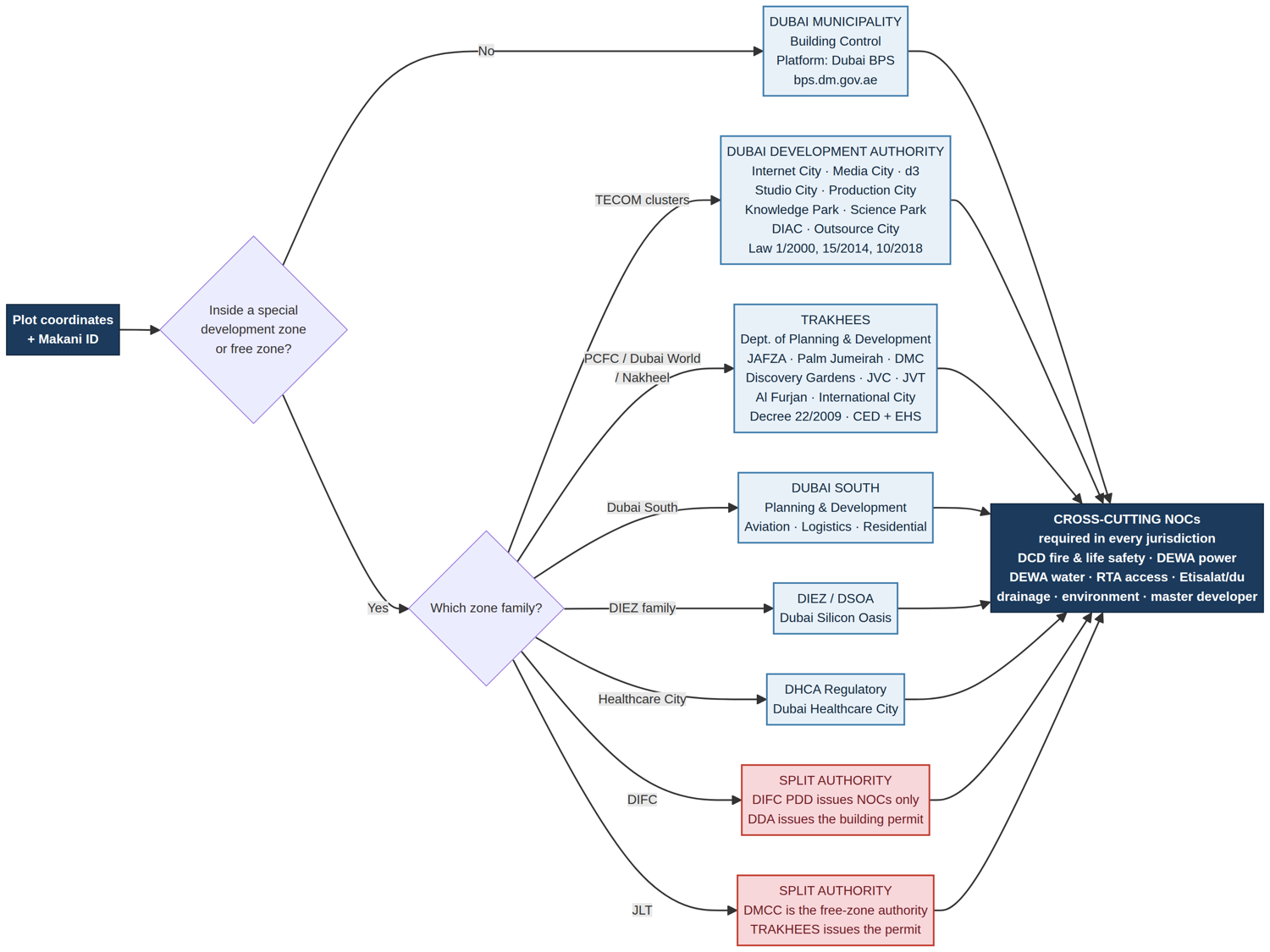

Jurisdiction routerWhy the design-language boundary and the permitting-authority boundary are two independent spatial indexes — DIFC sits inside the global-centre design zone but is permitted by DDA.
